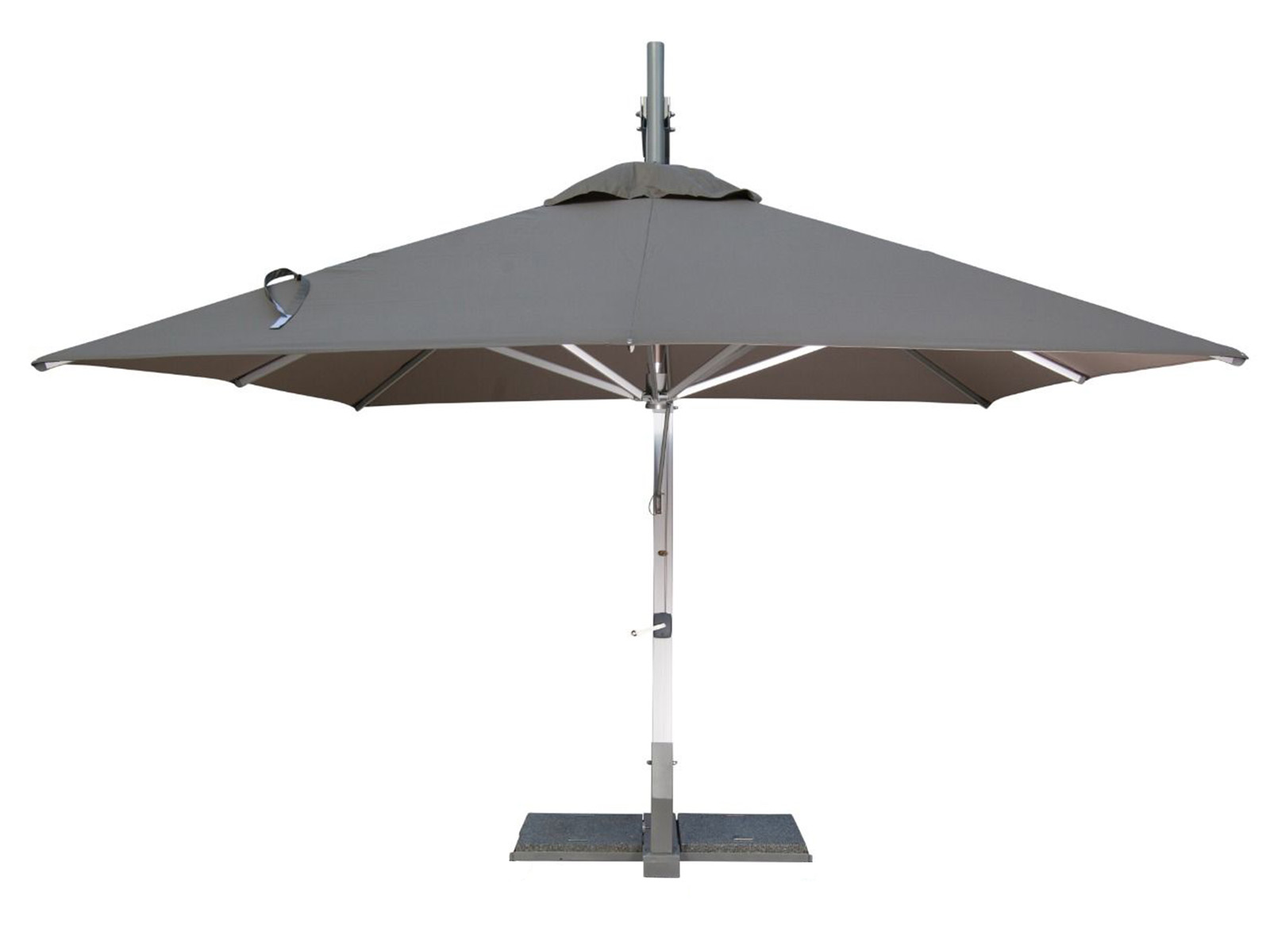

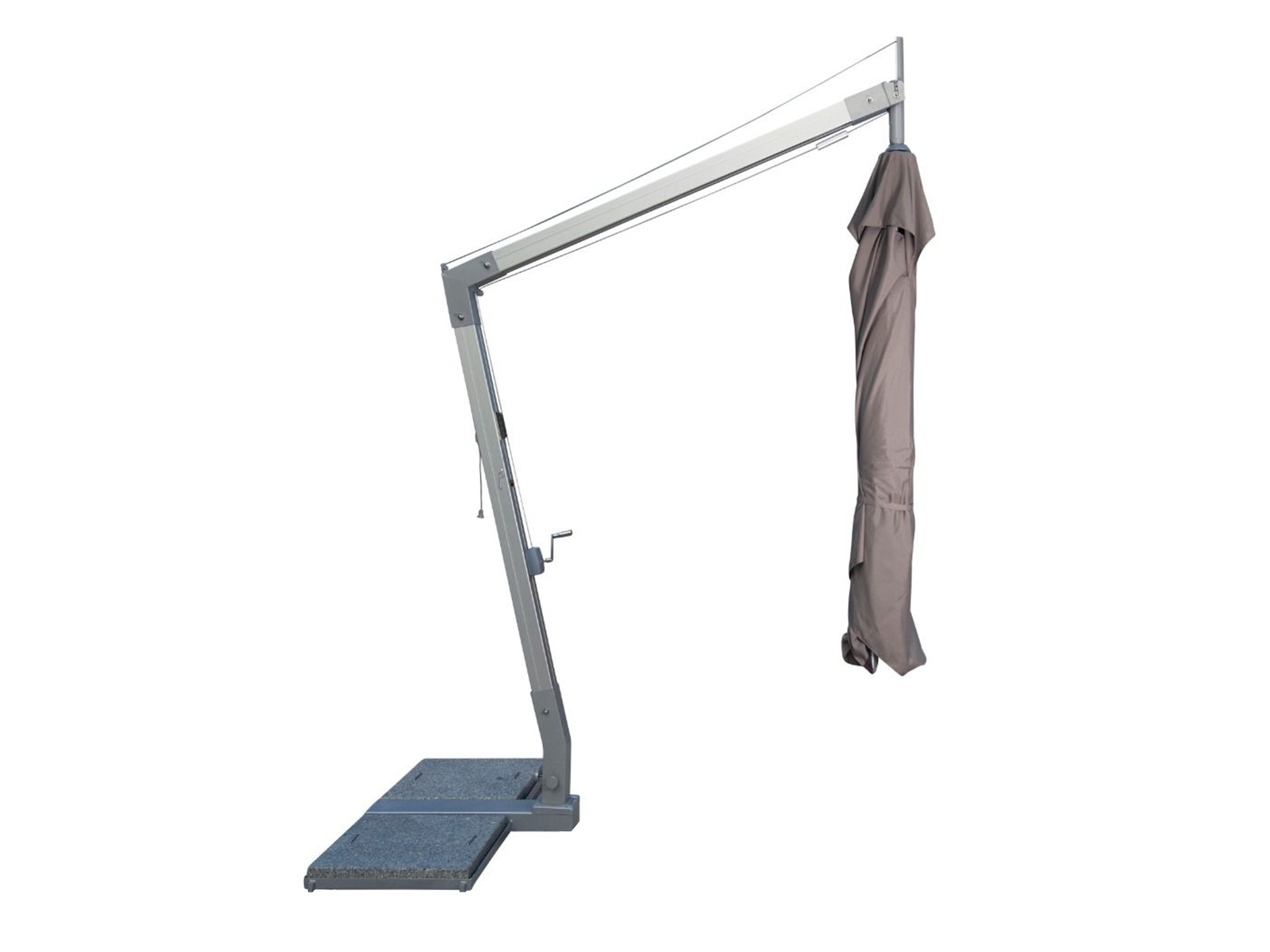

Bambrella Hurricane Side Wind – Heavy Duty Cantilever Parasol

From Original price was: £1,828.80.Current price is: £1,463.04. incl. VAT ( £1,219.20 ex. VAT )

The Hurricane Side Wind is Bambrella’s best selling heavy duty cantilever parasol.

This beautiful parasol is manufactured and designed to exacting standards with durability, strength and style in mind – the three key points of all Bambrella parasols. The Hurricane Side Wind is an extra large cantilever parasol that is perfect for providing shade and protection from all types of weather for commercial premises, patios and gardens.

  • Highly resistant to all types of weather.
  • Smart geared winch system for fast and easy operation.
  • Easy installation and low maintenance.
  • Large sizes available ranging from 3 metres up to 3.4 metres.
  • 5 year guarantee on frames and hardware.
  • Heavy duty frame made from aluminium and steel
  • Many Heating, lighting and base options available.
Step 1 - Choose Size, Shape & Canopy Material
then click the corresponding price

Step 1 - Choose Size, Shape & Canopy Material (then click the price)

Size and shape*
Step 2 - Choose Canopy Colour
Canopy Colour*
Canopy Colour*
Canopy Colour*
Canopy Colour*
Canopy Colour*
Canopy Colour*
Canopy Colour*
Canopy Colour*
Canopy Colour*
Canopy Colour*
Canopy Colour*
Canopy Colour*
Canopy Colour*
Canopy Colour*
Canopy Colour*

Step 3 – Choose Base Option & Type
Base*
Base*
Frame included in selected Parasol Base:*
Bases included in selected Parasol Base:*
Bases included in selected Parasol Base:*
Step 4 – Choose Optional Accessories
Accessories

Accessories

LED Light Bracket
Bespoke Options Available
Bespoke options

We offer a range of bespoke options for this parasol. Please select from the below options, once selected, please complete your details below and we will get back to you ASAP with a quote for these options. Please note you will not be able to buy this product online if you have selected a Bespoke option.

Valance Designs

Valance Designs

Valance Designs

If guttering, side panels or artwork are required then we recommend the use of a valance.

Five different valance styles are available as standard; straight, rib cut, equal scalloped, unequal scalloped and castellated.

Colour
If your colour is not here please specify details about it

Total excl. vat

To enable us to quote for the above selected bespoke options, please complete the following details and we will get back to you with a quote.

*

Bambrella Hurricane Side Wind – Heavy Duty Cantilever Parasol

Details:

The Bambrella Hurricane Side Wind parasol is designed with environmental factors in mind. This beautifully crafted heavy duty cantilever parasol is perfect for luxurious commercial and residential locations creating a statement of style and class.

Operation:

The geared winch system makes operating this parasol simple and easy to use: once your parasol has been installed in accordance with the provided instructions and it’s ready to use, to open it – start by rotating the handle and you can see how the canopy is tensed by the ribs of the frame. For tilting the canopy, continue turning the handle after the fabric is stretched and you can have a 45-degree tilt. To fully collapse it, you’ll be required to reverse the movement and rotate the handle counter-clockwise until the parasol is safe and closed.
geared winch for heavy duty cantilever parasol

Materials Used:

All of Bambrella’s aluminium parasols are wind tunnel tested up to 121 km/h – to measure the strength and durability of the heavy duty frame and canopy.

The frame – The Hurricane cantilever is a top-quality parasol, constructed with the highest grade materials. The aluminium frame and the stainless-steel fittings make it robust, durable, and easy to clean. These materials prevent rust and make it a long-lasting product.

The canopy – Once this cantilever parasol is open, you’ll be astonished by the size and quality of the canopy. There are three materials available – the standard Acrylic and the premium Bamcrylic and Recasens. All canopies are fade/water-resistant and have a 50+ UV protection factor. Read our guide for choosing a parasol canopy colour for more details.

The ribs – They can be replaced individually, whenever needed, without disassembling the entire structure. The membrane can be easily removed for maintenance or replacement.

(*) Bases and Fixations

3.5m Round and 3m Square [top base = 2 x 70kg granite]
3.4m Square – [top base = 2 x 70kg concrete]
4m Square – [top base = 4 x 70kg granite]

cantilever parasol portable base with tilesPortable base

permanent in ground base for heavy duty cantilever parasolIn-ground base with sleeve

Shapes and Sizes:

The Hurricane Side Wind is an extra-large cantilever parasol and is available in 2 shapes and 3 sizes (Round 3.5 metres and Two Square of 3 metres and 3.4 metres).

Visit the ‘Technical Data’ tab for more info about this product or see our parasol size guide and index for other models.

Usage:

The Hurricane Side Wind provides the perfect solution for commercial customers that are situated in harsh weather locations and need a large shade for their outdoor space.

The Hurricane Side Wind cantilever’s side arm allows the canopy to be placed over your desired area without getting in the way. Ideal for pubs, terraces, or pools and equally for residential properties.

The wide diameter and sturdy frame ensures this parasol will remain rigid even in strong winds, making this a great choice for a heavy-duty cantilever parasol.

__________________________________________

Engineered in the United Kingdom to the very highest standards, this superb parasol will meet the requirements of the most discerning customer.

Founded in 2007, Bambrella is an environmentally conscious parasol designer and manufacturer and is passionate about providing quality garden umbrellas made from eco-friendly and sustainable sources.

Bambrella are the first, and to date only, company producing laminated bamboo parasols. Bambrella are recognised globally as a market-leading and innovative brand in both design and fabrication.

If you have any questions, need help, or require further information, please contact us

(*) WARNING:

These parasols were wind tunnel tested in order to test the durability and strength of the pole and canopy.

The parasols were bolted and secured to the ground. Do not leave any parasol in the open position in winds in excess of 20mph, without being fitted and bolted to the ground by a licensed contractor.

Always close your parasol when not in use and place a protective cover over the top.

Technical Data

Technical Data

Diagram Reference Material Frame Opening
1 = Total height, 2 = Open height, 3 = Closed height The posts and ribs are made from aluminium, while the hub and runner are crafted from marine-grade nylon PA66. A double pulley and rope system ensures easy and light opening.
Hurricane Side Wind Specifications
Diagram Code Size Total height Open height Closed height No. of Ribs Rib Size Bases
3.5m Round 3.5m R-SW-H 3.5m (12′) 3.1m (10’2″) 2.1m (6’10”) 0.82m (2’8″) 8 35 x 20mm 1 3/8″ x 3/4″ 2 x 70kg 2 x 154lb
3.0m Square 3.0m SQ-SW-H 3.0m (10′) 3.20m (10’6″) 2.1m (6’10”) 0.60m (1’11”) 8 35 x 20mm 1 3/8″ x 3/4″ 2 x 70kg 2 x 154lb
3.4m Square 3.4m SQ-SW-H 3.4m (11’5″) 3.36m (11′) 2.1m (6’10”) 0.43m (1’5″) 8 35 x 20mm 1 3/8″ x 3/4″ 2 x 70kg 2 x 154lb

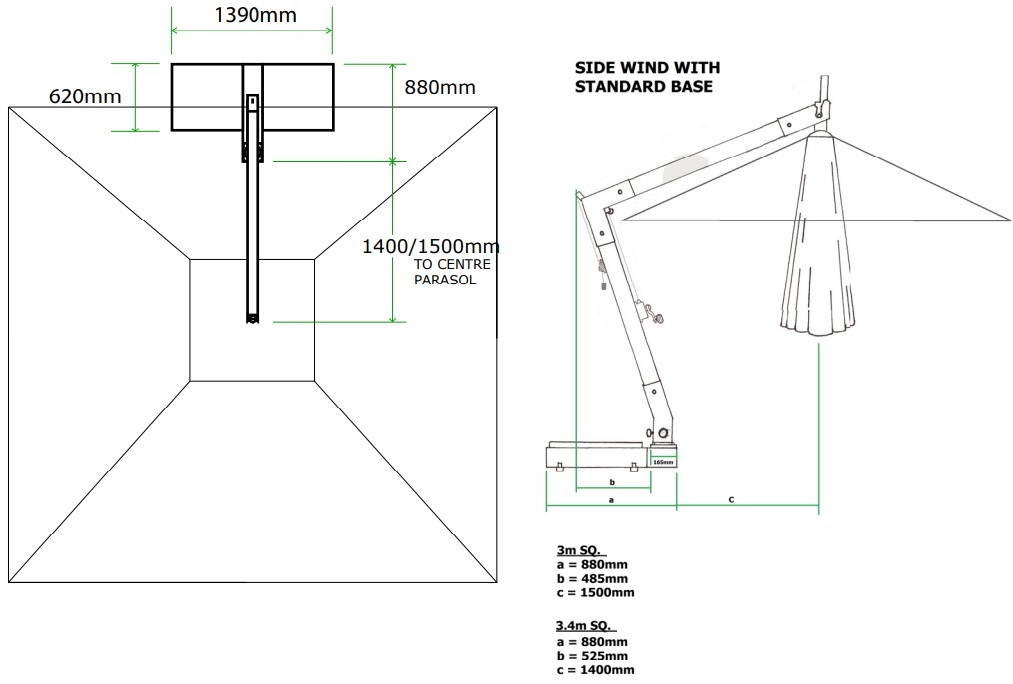

Hurricane Side Wind Standard Base Specs:

hurricane side wind base specs and drawing

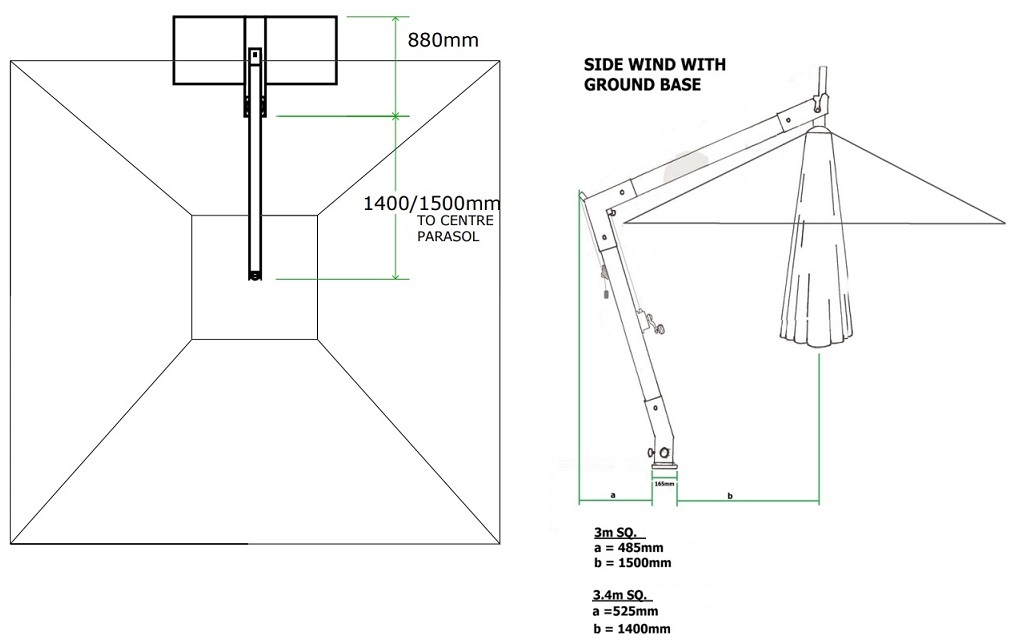

Hurricane Side Wind In-Ground Base Specs:

hurricane side wind specs for in ground base

Canopy Materials

Canopy Materials

Bamcrylic® Parasol Cover Material

Bamcrylic Acrylic is the industry standard for hotels, restaurants and any other hospitality location.

Bamcrylic offers customers:

  • A Acrylic which has been through a process called solution dying, a technique used to add colour to a synthetic fibre.
  • A solution dyed canopy colouring through all layers of the Acrylic thread, guaranteeing more vibrant, longer lasting colour.
  • A high-level of resistance to fading from direct sunlight.
  • A canopy which offers good stain resistance and water repellence.
  • An affordable canopy which provides resistance to all weather conditions.
  • A canopy which delivers a *UPF (Ultraviolet Protection Factor) of at least 50.

*UPF (Ultraviolet Protection Factor), Indicates the fraction of the sun’s ultraviolet rays that penetrate fabric. Example, Material with a UPF of 50, allows just 1/50th of the sun’s UV radiation to reach your skin. The higher the UPF (Ultraviolet Protection Factor), the greater the protection offered.

Acrylic Canopy Cover Material

The standard, piece dyed Acrylic is the entry level parasol canopy and one you will find most commonly on parasols available on the high street. The standard Acrylic is a great option if you’re Acrylic offers customers:

  • Acrylic is a strong fibre, resistant to creasing and keeps its shape.
  • Acrylic is piece dyed meaning the thread is only coloured on the outside of the canopy, like a radish!
  • Offers an affordable alternative to Bamcrylic
  • Shade Specialists only offer Acrylic covers in two natural colours, beige and natural as darker, stronger colours would be more susceptible to fading over time.

Recasens RECacril® Parasol Cover Material

The acrylic recasens material is the rolls Royce of canopies. Made from strong, hard wearing acrylic material. The recasens canopy offers the top level of protection from the elements Recasens offers customers:

  • A high-performance acrylic fabric of the very highest quality.
  • The very best water resistance and protection from the sun.
  • A matieral used extensively in the boating and marine industries for its strength and durability.
  • An Ultraviolet Protection Factor (UPF) of up to +80 according to international standard UV 801.
  • Low reactivity and high stability offering long lasting protection against mold, plus excellent water and oil repellence.
  • An effective sunscreen as they filter a high percentage of ultraviolet radiation.

*UPF (Ultraviolet Protection Factor), Indicates the fraction of the sun’s ultraviolet rays that penetrate fabric. Example, Material with a UPF of 50, allows just 1/50th of the sun’s UV radiation to reach your skin.

Base Guide

Base GuideIn all cases, if the parasols are going to stay in a permanent position, we would recommend fitting a ground base or deck plate as a more solid, stable option.

Size of canopy Recommended base weight Comments and advice

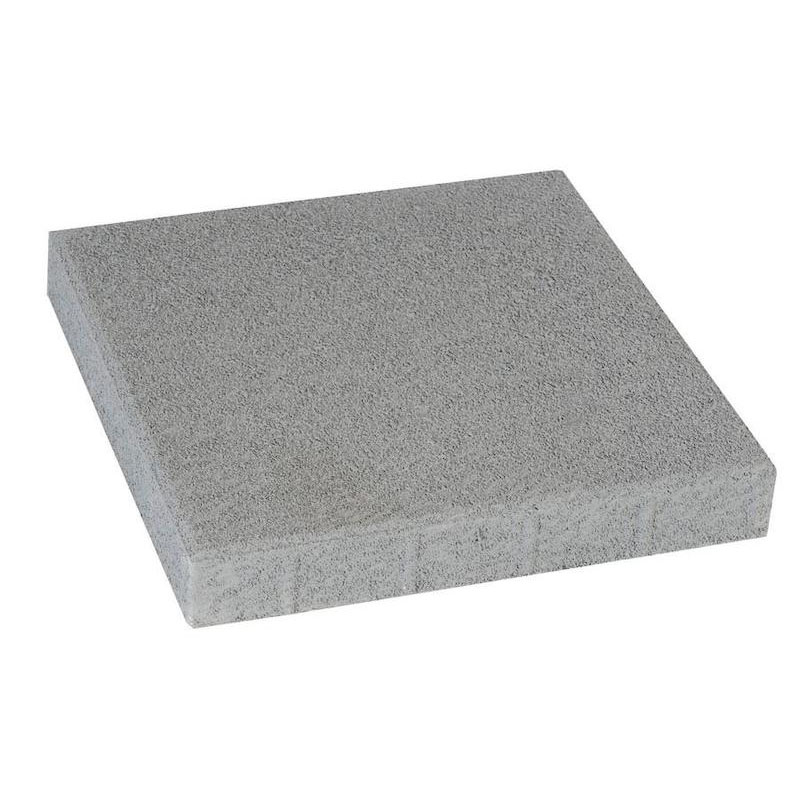

2.6m Square (Santa Anna/Sirocco) 4 x 30kg concrete/granite Extra rows of base weights are available for windier, or commercial locations.
3.0m Round (Santa/Sirocco) 4 x 30kg concrete/granite Extra rows of base weights are available for windier, or commercial locations.
2.5 x 3.5m Rectangle (LSW/HSW) 2 x 70kg bamboo/granite For windier, or commercial locations, 2 x 30kg concrete underlay weights (bringing total weight to 200kg)
3.0m Square (LSW/HSW) 2 x 70kg bamboo/granite For windier, or commercial locations, 2 x 30kg concrete underlay weights (bringing total weight to 200kg)
3.4m Square (LSW/HSW) 2 x 70kg bamboo/granite 2 x 30kg concrete weight Extra 70kg weights are available for windier, or commercial locations.
3.5m Round (LSW/HSW) 2 x 70kg bamboo/granite For windier, or commercial locations, 2 x 30kg concrete underlay weights (bringing total weight to 200kg)
3 x 4m Rectangle (LSW/HSW) 2 x 70kg granite 2 x 30kg concrete weight Extra 70kg weights available for windier, or commercial locations.
4.0m Square (HSW) 4 x 70kg grey granite Extra 70kg weights available for windier, or commercial locations.

Attachments

Videos

Wind Tunnel Test

Bambrella Hurricane Side Wind - How to use cantilever parasol
