Details

The Levante Telescopic is a superb parasol that comes with a 4 metre size canopy and is a must-have for your terrace or garden. It’s easy to install and withstands harsh weather conditions such as hot sunny days, storms and wind, making it a great addition to any outdoor area. It looks amazing in any garden and particularly useful if you need to shade a number of tables at once.

Operation

This 4 metre parasol uses a smart double pulley with rope system for operating it in the most simple way possible: for unfolding the canopy, pull one end of the rope until the frame stretches the fabric. Make sure you lock the rope using its cleat clamp and enjoy your shade. When not in use, unlock the clamp and pull the shorter end of the rope until the frame is completley closed.

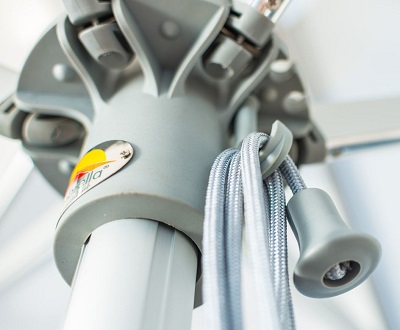

hub with rope and pulley for opening

Materials Used

  • The frame – the aluminium frame and ribs, along with marine grade nylon for the hub and runner and stainless steel fittings are the key elements that make this heavy duty umbrella to be light weight and in the same time solid against winds.
  • The canopy – all of the 3 options available (Polyester, Spuncrylic and Recasens) are made to be fade, tear and wind resistant, with a high UV protection factor of 50+. You can choose between 20 parasol colours or you can opt to have your brand printed to promote your business.

The canopy is replaceable and all the smaller parts are fast and easy interchangeable.

Shapes and Sizes

If you prefer your garden umbrella with a Round canopy, we have it available in 2.5, and 3m, whilst the Square model has a 2m size canopy. For other shapes or sizes, have a look at our parasol size guide to find the perfect fit.

Accessories

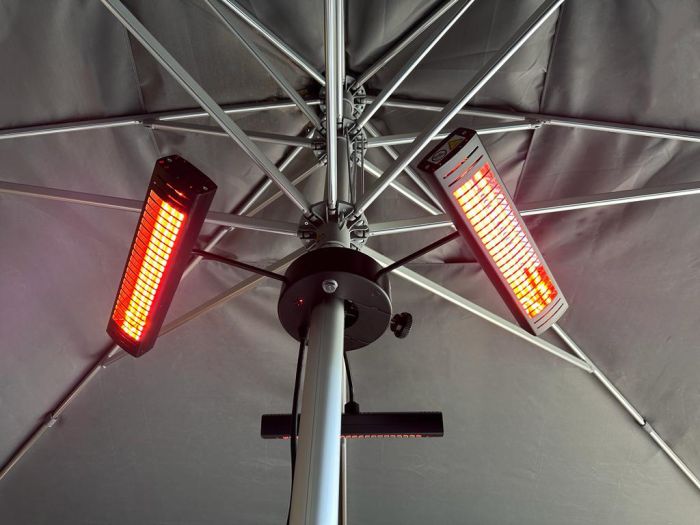

infra red heater with 4 lampsHeaters –  The LOU Lamp is portable and has a high autonomy for more than 6 hours, whilst the 3KW Tri Parasol heater with remote control are suitable accessories for this smaller garden model.

hanging lights for parasolLights: Adding a set of lights like the Bambrella Hanging Lights will make your parasol glow in the dark. Lightweight and portable, with long lasting battery, this LED lights offers enough for you to read, cook or have different activities under your garden umbrella.

Usage

Designed more with the residential sector in mind due to its smaller size, the Santa Ana could equally fit in commercial premises like café or pub terraces or where the space is more limited or narrower.

No matter the place you wish to shade or shelter, when needed, it’s easy and quick to install or remove, but you can confidently leave it outside even during the fiercest summer storms.

The Santa Ana Aluminium is a versatile heavy duty garden umbrella that will proudly confirm you made a smart decision when purchased.

__________________________________________

Engineered in the United Kingdom to the very highest standards, this beautiful parasol will meet the requirements of the most discerning customers.

Founded in 2007 Bambrella is an environmentally conscious parasol manufacturer passionate about providing quality garden umbrellas made from echo friendly and sustainable sources.

Bambrella are the first, and to date only, company producing laminated bamboo parasols. Bambrella are recognised globally as a market leading and innovative brand in both design and fabrication.

If you have any questions, need help, or require further information, please contact us.

(*) WARNING:These parasols have been tested for durability in wind tunnels, but they must be bolted to the ground by a licensed contractor to withstand winds above 20mph.

Always close your parasol when not in use!

Technical Data

Technical Data

Diagram Reference Material Frame Opening
1 = Total height, 2 = Open height, 3 = Closed height The post and ribs – aluminium, hub and runner – marine grade nylon PA66 A double pulley and rope system is used for easy, light opening.
Santa Ana Aluminium Specifications
Diagram Code Size Total height Open height Closed height Pole size No. of Ribs Rib Size
2.5m Round 3.0m R-SA 2.5m 8.5′ 2.4m 7’10” 1.9m 6’3″ 1.2m 3’9″ 38mm 1.5″ or 2″ 6 35 x 20mm 1″ x 3/4″
2.7m Round 2.7m R-SA 2.7m 9′ 2.43m 7’11” 1.9m 6’3″ 1.0m 3’3″ 38mm 1.5″ or 2″ 6 25 x 20mm 1″ x 3/4″
3.0m Round 3.0m R-SA 3.0m 10′ 2.54m 8’4″ 1.9m 6’3″ 1.0m 3’3″ 38mm 1.5″ or 2″ 6 35 x 20mm 1″ x 3/4″
2.0m SQ-SA 2.0m x 2.0m 7′ x 7′ 2.53m 8’4″ 2.0m 6’6″ 1.0m 3’3″ 38mm 1.5″ or 2″ 4 25 x 20mm 1″ x 3/4″

Canopy Materials

Canopy Materials

Spuncrylic® Parasol Cover Material

Spuncrylic polyester is the industry standard for hotels, restaurants and any other hospitality location.

Spuncrylic offers customers:

  • A polyester which has been through a process called solution dying, a technique used to add colour to a synthetic fibre.
  • A solution dyed canopy colouring through all layers of the polyester thread, guaranteeing more vibrant, longer lasting colour.
  • A high-level of resistance to fading from direct sunlight.
  • A canopy which offers good stain resistance and water repellence.
  • An affordable canopy which provides resistance to all weather conditions.
  • A canopy which delivers a *UPF (Ultraviolet Protection Factor) of at least 50.

*UPF (Ultraviolet Protection Factor), Indicates the fraction of the sun’s ultraviolet rays that penetrate fabric. Example, Material with a UPF of 50, allows just 1/50th of the sun’s UV radiation to reach your skin. The higher the UPF (Ultraviolet Protection Factor), the greater the protection offered.

swatch for covers

Polyester Canopy Cover Material

The standard, piece dyed polyester is the entry level parasol canopy and one you will find most commonly on parasols available on the high street. The standard polyester is a great option if you’re working on a budget. While it only comes with a 1 year warranty, if looked after, it should last well beyond that. Polyester offers customers:

  • Polyester is a strong fibre, resistant to creasing and keeps its shape.
  • Polyester is piece dyed meaning the thread is only coloured on the outside of the canopy, like a radish!
  • Offers an affordable alternative to Spuncrylic
  • Shade Specialists only offer polyester covers in two natural colours, beige and natural as darker, stronger colours would be more susceptible to fading over time.

Recasens RECacril® Parasol Cover Material

The acrylic recasens material is the rolls Royce of canopies. Made from strong, hard wearing acrylic material. The recasens canopy offers the top level of protection from the elements Recasens offers customers:

  • A high-performance acrylic fabric of the very highest quality.
  • The very best water resistance and protection from the sun.
  • A matieral used extensively in the boating and marine industries for its strength and durability.
  • An Ultraviolet Protection Factor (UPF) of up to +80 according to international standard UV 801.
  • Low reactivity and high stability offering long lasting protection against mold, plus excellent water and oil repellence.
  • An effective sunscreen as they filter a high percentage of ultraviolet radiation.

*UPF (Ultraviolet Protection Factor), Indicates the fraction of the sun’s ultraviolet rays that penetrate fabric. Example, Material with a UPF of 50, allows just 1/50th of the sun’s UV radiation to reach your skin.

Base Guide

Base Guide

In these cases, if the table is light (less than 20kg in weight), please follow the free-standing guide. If you are situated in areas that are prone to strong gusts and wind conditions over 25mph, please exercise caution and in most cases, go for a heavier weighted base.

In all cases, if the parasols are going to stay in a permanent position, we would recommend fitting a ground base or deck plate as a more solid, stable option.

Parasol going through a sturdy table (over 20kg)
Size of canopy Recommended base weight Comments and advice
2m Square 25kg grey granite 30kg grey granite Comes with its own tube
2.5m Round 25kg grey granite 30kg grey granite Comes with its own tube
3.0m Round 50kg grey granite 50kg grey steel Needs prem or standard tube
Parasol free standing
Size of canopy Recommended base weight Comments and advice
2m Square 50kg grey granite 50kg grey steel For windier, or commercial locations, suggest a 70kg Needs a premium tube
2.5m Round 50kg grey granite 50kg grey steel For windier, or commercial locations, suggest a 70kg Needs a premium tube
3.0m Round 50kg grey granite 50kg grey steel For windier, or commercial locations, suggest a 70kg Needs a premium tube

Attachments

Videos

Bambrella Santa Ana - How to open, assembly and close parasol

1 review for Bambrella Santa Ana Aluminium Parasol

  1. Stephen

    efficient delivery. Product met my expectations and was reasonably priced.

Add a review

Your email address will not be published. Required fields are marked *


Bambrella Santa Ana Aluminium Parasol
From £386.40 Original price was: £386.40.£309.12Current price is: £309.12. incl. VAT ( £257.60 ex. VAT )
